Disposable Sterile Safety I.V. Catheter with Fixation Wing
The I.V. catheter, or called peripheral iv catheter, is made up of a protective cap, peripheral catheters, pressure cap, catheters supporter, needle tube, air-outlet connector, dosing cap, rubber plunger, etc. The iv needle and catheter is often used with transfusion sets, infusion sets, and blood collection devices. The iv catheter extension set is adopted by insert-blood-vessel-system, which can efficiently avoid cross-infection. The target user group of the iv catheter set should be professional medical staff who have been trained or have practical experience.

● 14G,16G,17G,18G,20G,22G,24G,26G.
● Sterile,non-pyrogenic.
● Veterinary use only.
● Radiopaque lines for X-ray visibility.
● The mini wings for patient comfort.
● Colour-coded hub for easy size recognition.
● Flash-back window.
● Isolation of blood.
● Back cut bevel extremely sharp and back-cut for smooth Insertion.
● PU biomaterial catheter.

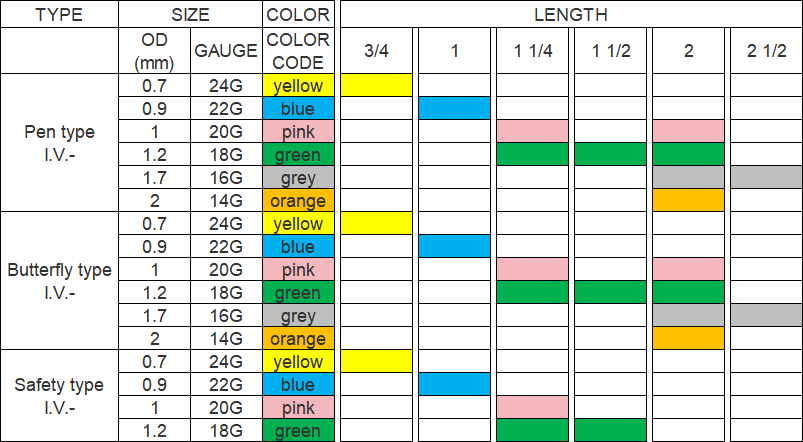

Size
|
14G
|
16G
|
18G
|
20G
|
22G
|
24G
|
28G
|
Diameter
|
2.0mm
|
1.6mm
|
1.2mm
|
1.0mm
|
0.8mm
|
0.7mm
|
0.6mm
|
Needle Length
|
55mm
|
55mm
|
45mm
|
33mm
|
25mm
|
20mm
|
19mm
|
Color
|
Red
|
Gray
|
Green
|
Pink
|
Blue
|
Yellow
|
Purple
|
flow kate
|
300ml/min
|
200ml/min
|
90ml/min
|
61ml/min
|
36ml/min
|
18ml/min
|
12ml/min
|

* Disposable veterinary IV Catheter Needles provide a safe and hygienic experience, as they cannot be reused.
14G, 16G, 18G, 20G, 22G, 24G and 26G.
comfortable treatment.
